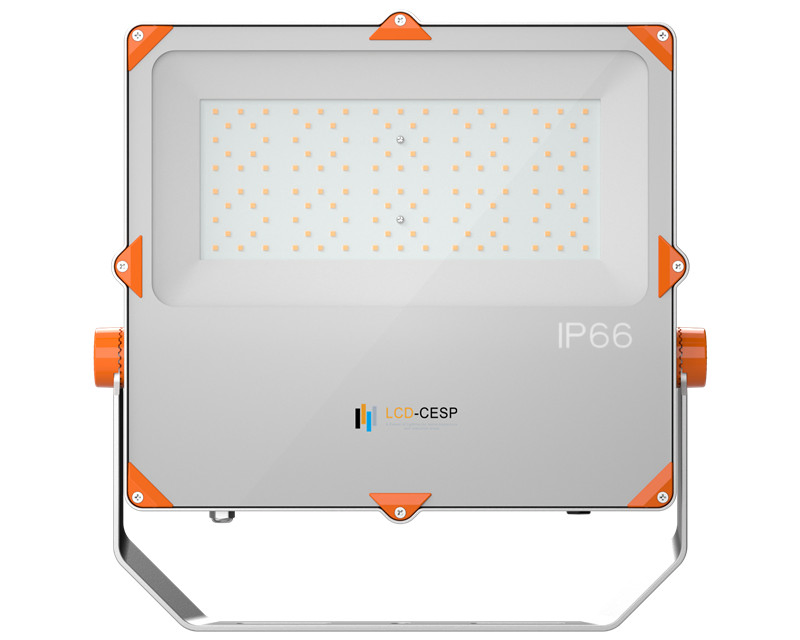

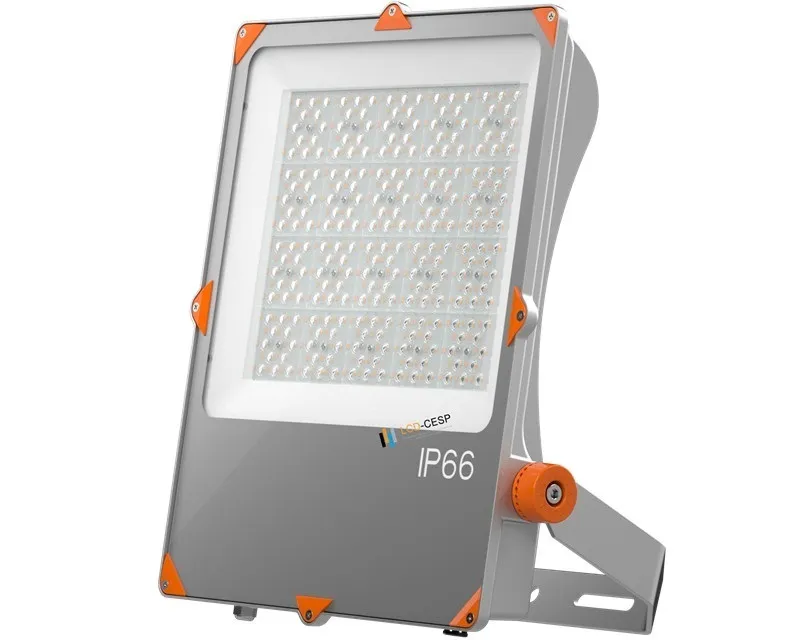

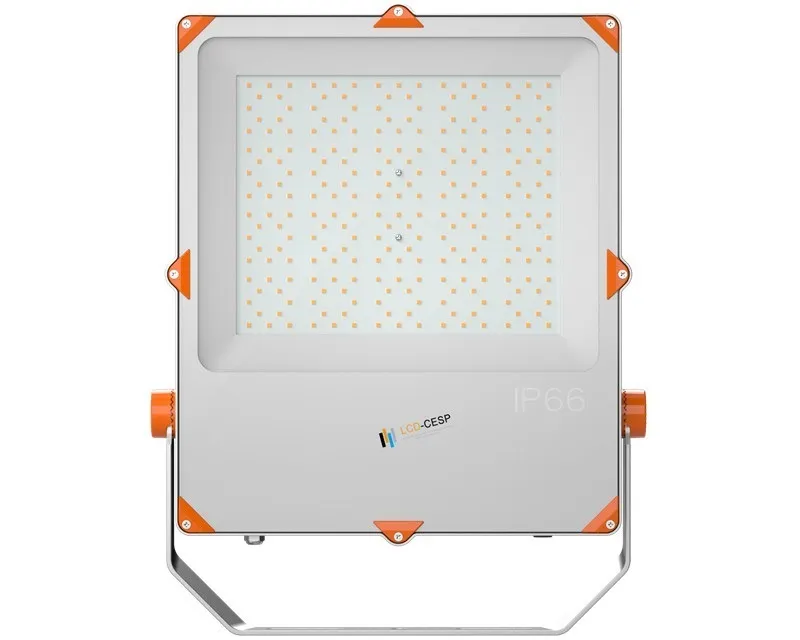

This professional-grade dimmable LED fixture operates at 200W within a 90-277VAC range. It features an adjustable color temperature from 2700K to 6000K, boasting an IP65 waterproof rating and high lumen output ranging from 1,400 to 28,000lm with IK07 impact resistance.
| Feature | Details |
|---|---|
| Wattage | 200W |
| Lumens | 28,000 lm |

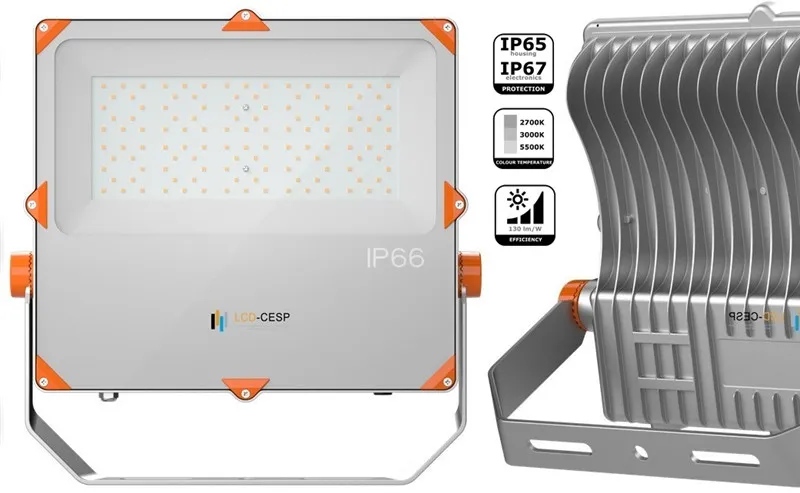

| Efficiency | >140lm/w |
| Light Source Color | Warm white, Neutral white, Cool white |
| Driver Options | Dimmable Ph / Meanwell / Proprietary LCD Brand |
| Optical Spread | 110°, 60ºx60º, 90ºx90º, 30ºx30º, TYPE 3/4/5 |
| Protection Class | Safety Class I / IP65 / IP66 |
| Warranty | 5 - 7 Years |
| LED Chip Type | LUXEON SMD 3030 / Cree / OSRAM |

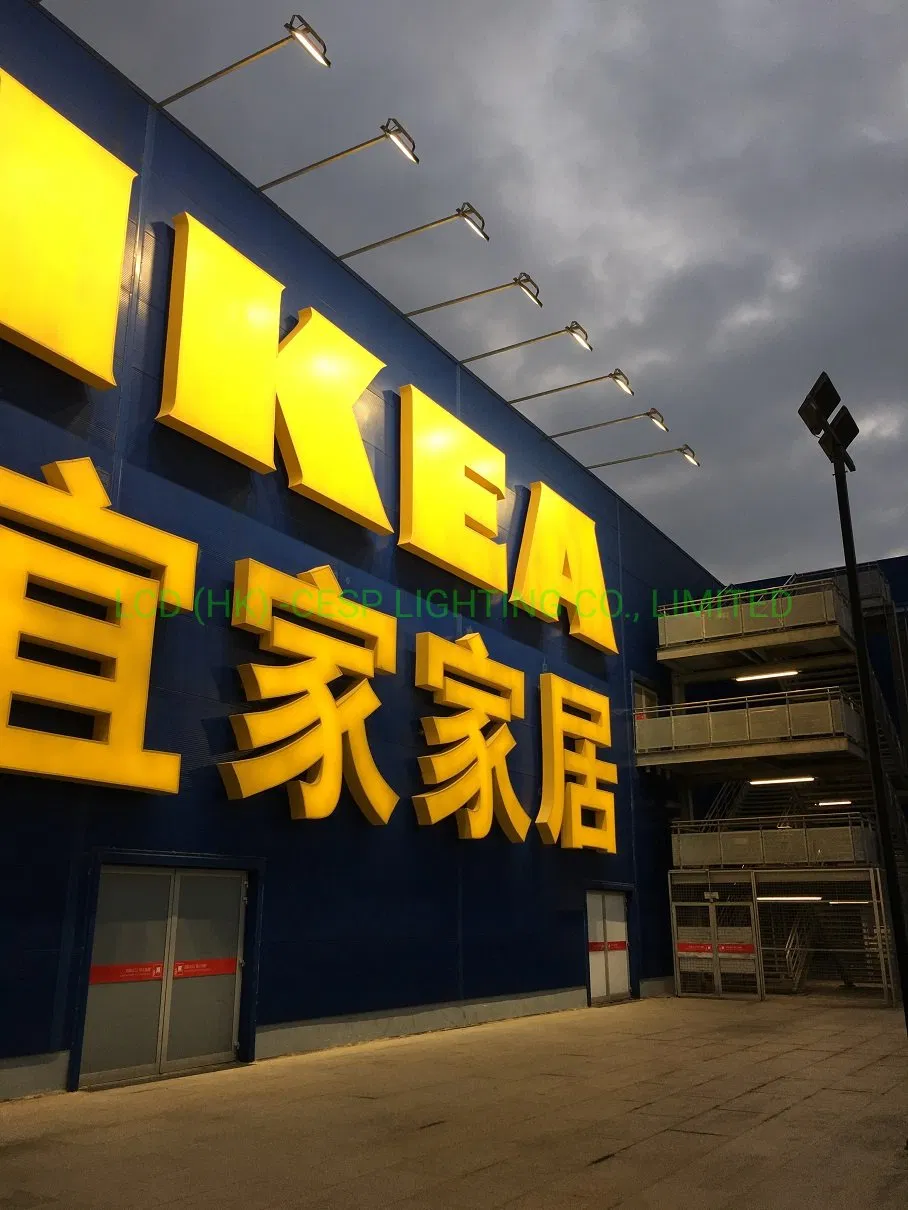

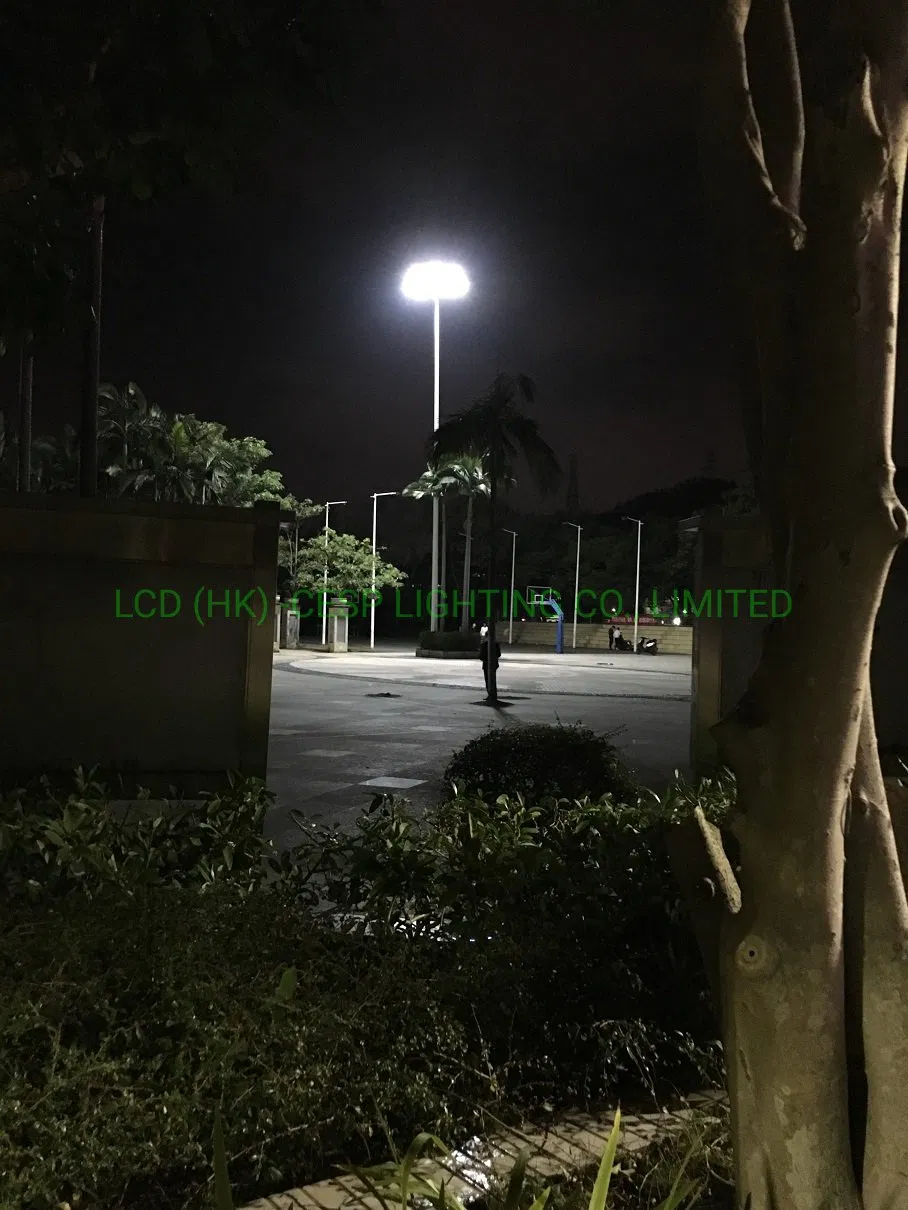

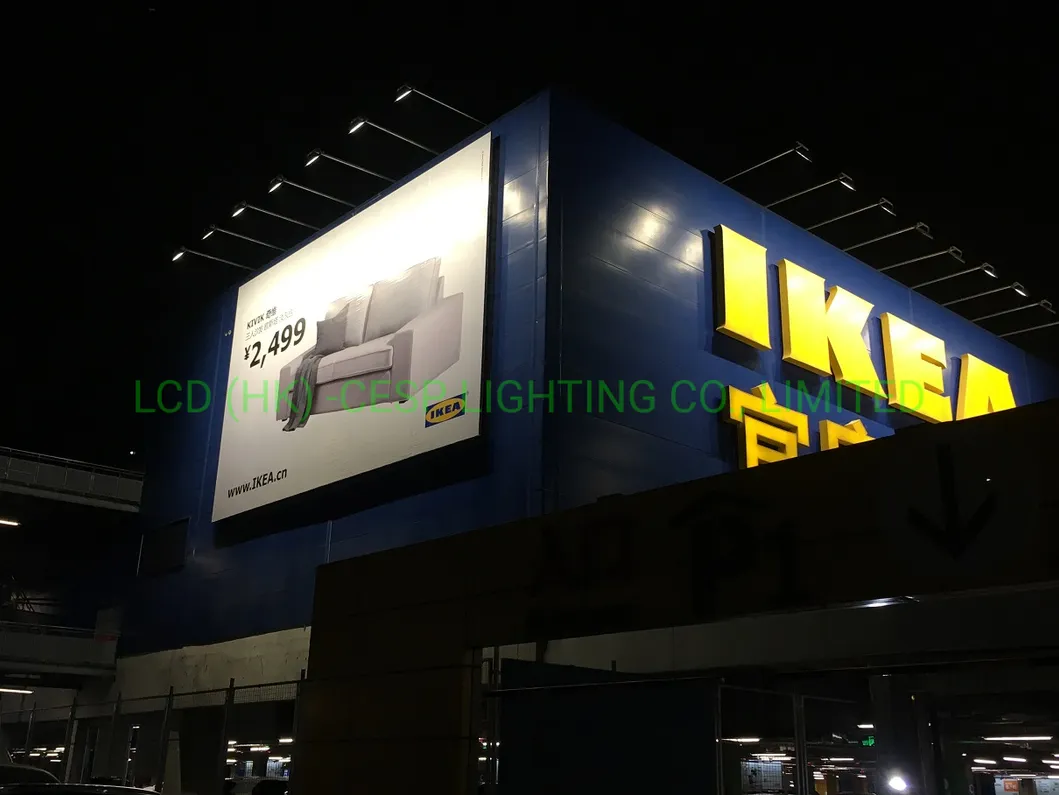

The luminaire is designed for area, architectural, and security lighting. Its slim, compact, and lightweight design ensures high performance with low aesthetic impact, making it ideal for:
| Housing Material | Aluminum alloy die-cast (Copper-free) |
| Reflector | Pure polish aluminum |
| Lens Material | Polycarbonate / Tempered Glass |
| Impact Protection | IK07 / IK08 |
| Effective Projected Area | 0.076m² |

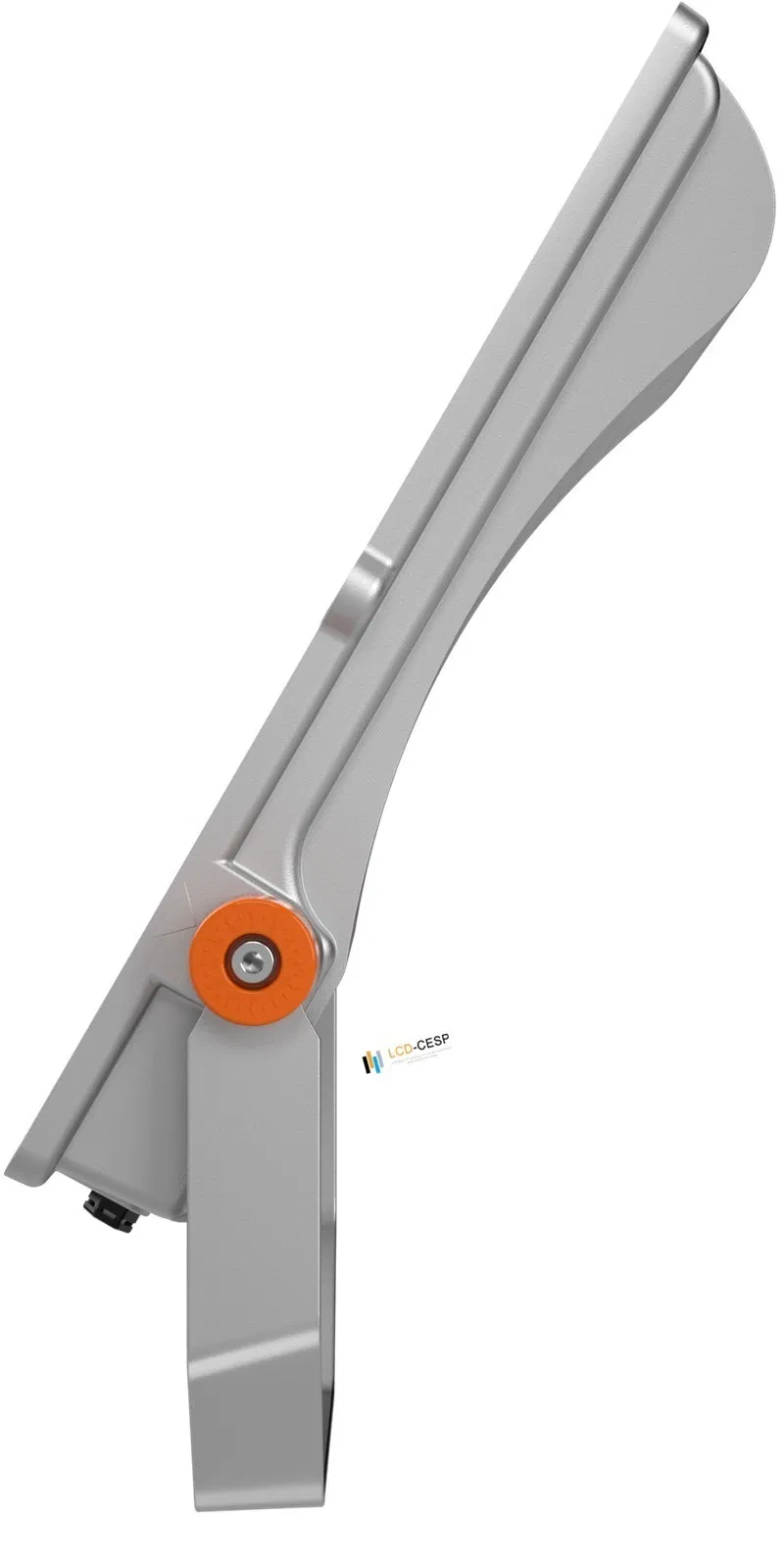

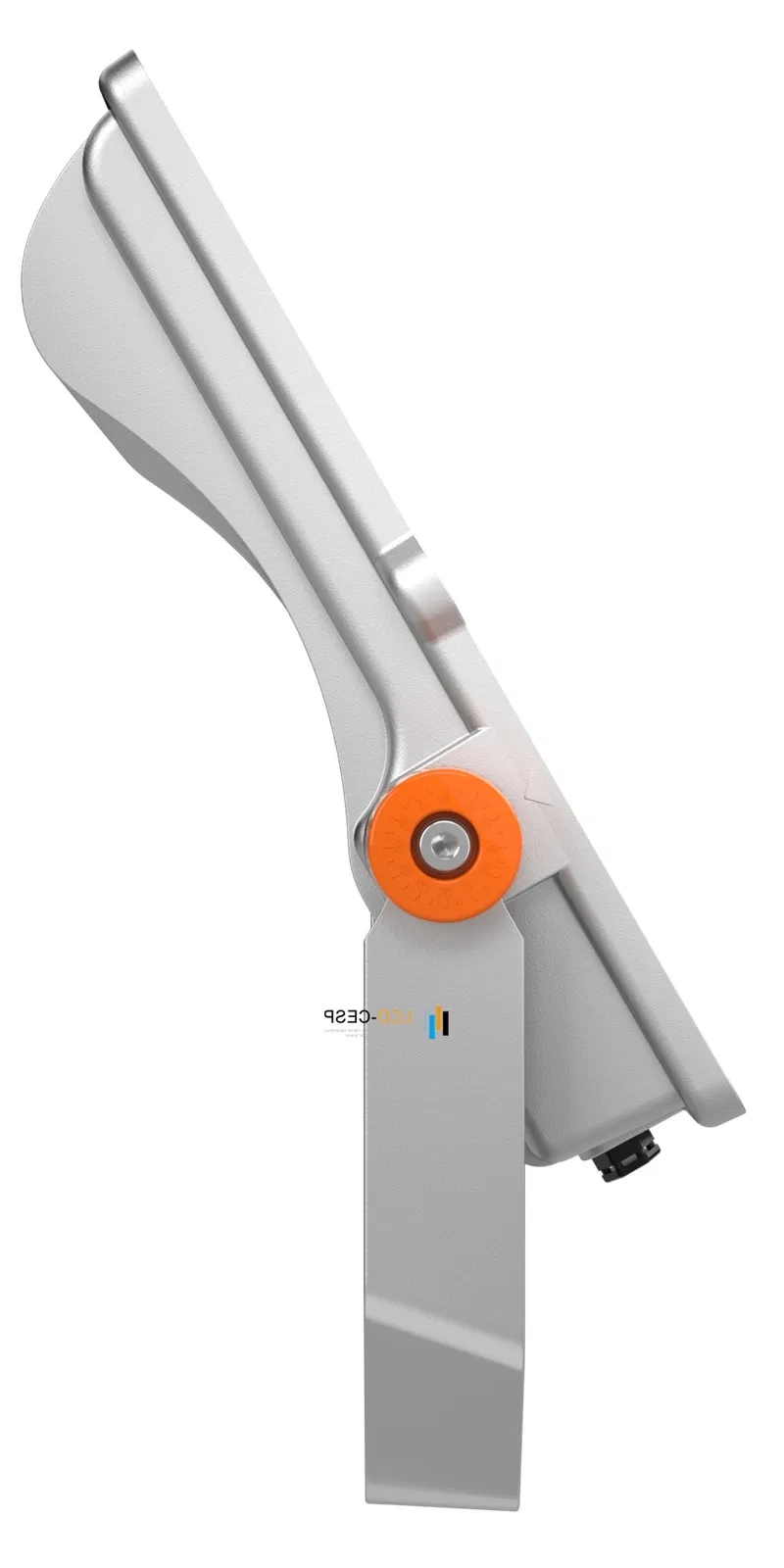

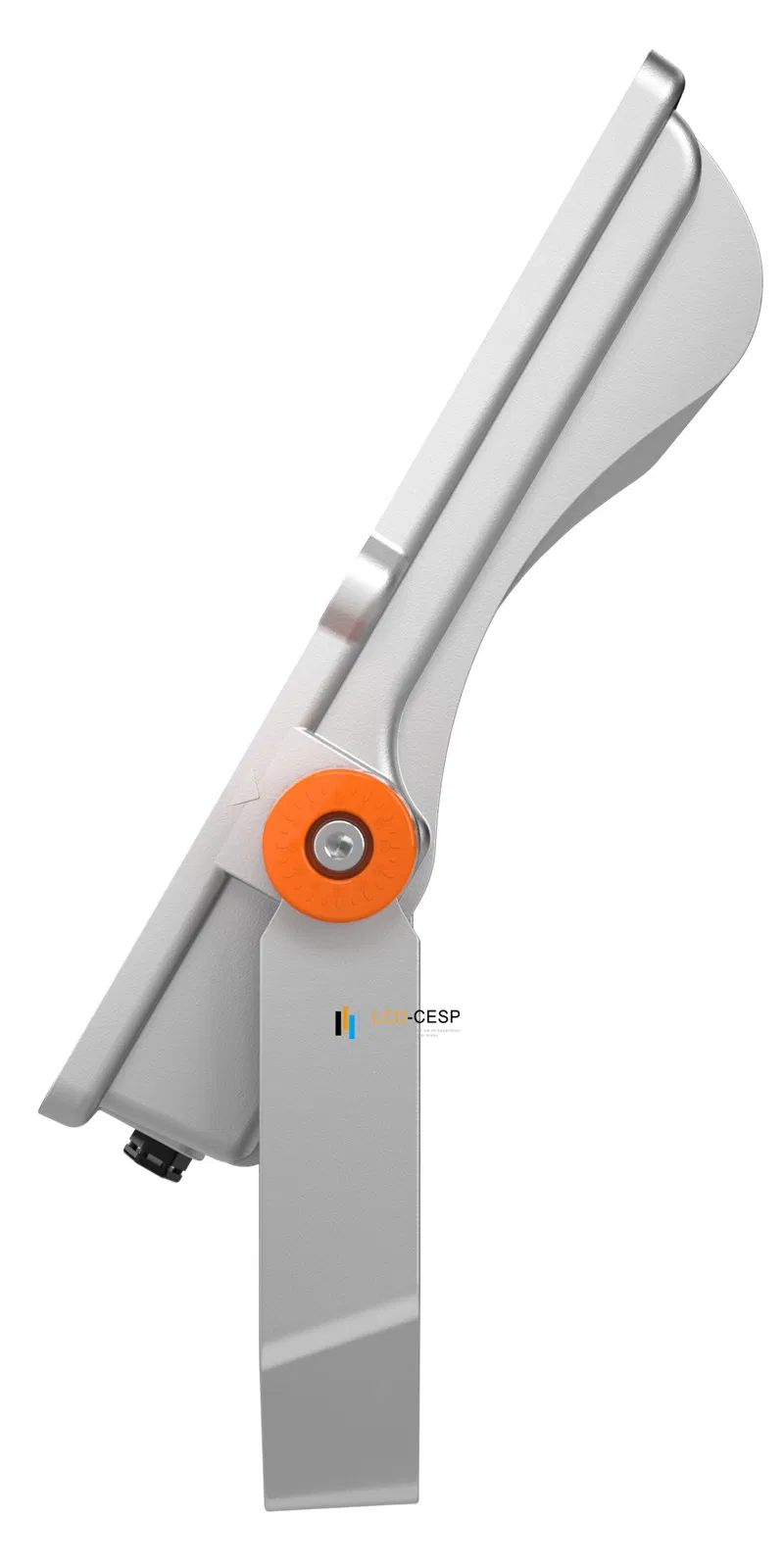

| Mounting Options | Adjustable Bracket / Slipfitter / Wall / Ceiling |

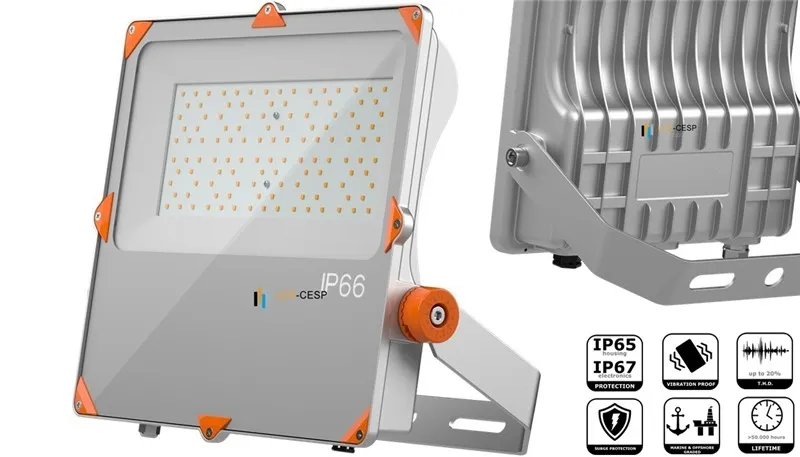

Features a super lightweight design and is pre-wired for effortless installation. Three mounting options cover all low area lighting applications including wall, surface, and mast/post mounting.
| Model No. | Power | Lumens | Voltage | Weight |
|---|---|---|---|---|
| LCD-FLY-053 | 50W | 6,500 lm | 85-265VAC | 1.50Kg |
| LCD-FLY-103 | 100W | 13,000 lm | 85-265VAC | 2.85Kg |
| LCD-FLY-153 | 150W | 19,500 lm | 85-265VAC | 4.18Kg |
| LCD-FLY-203 | 200W | 26,000 lm | 85-265VAC | 4.50Kg |
| LCD-FA-303 | 300W | 42,000 lm | 85-265VAC | 7.5Kg |

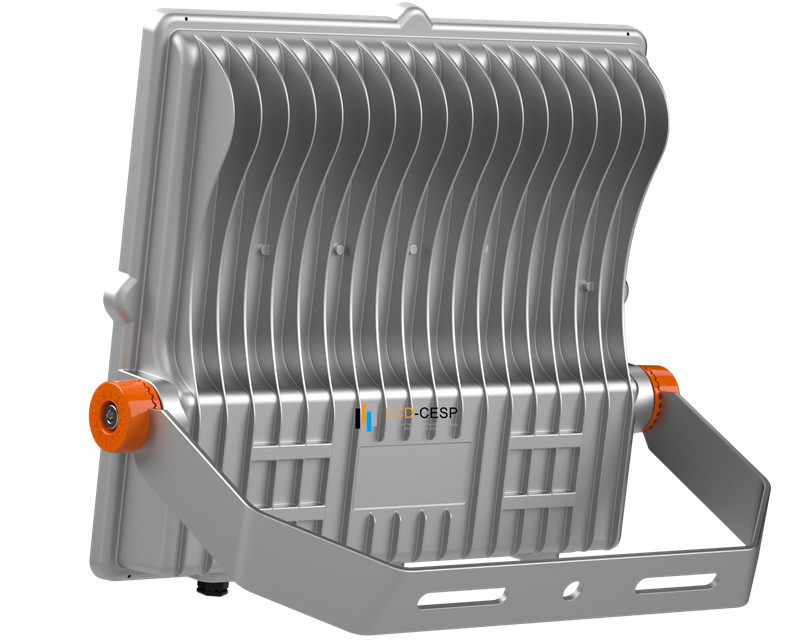

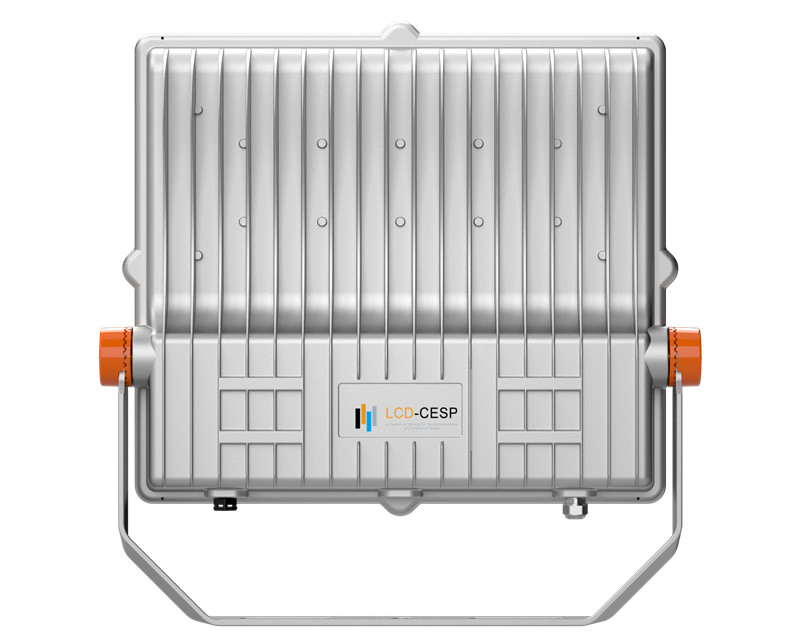

The extruded aluminum housing provides a thermal conductivity of about 230w/(m.k), which is 2.5 times higher than standard aluminum alloys. This ensures faster heat dissipation and a significantly longer lifespan for the LED engine.
Yes, the fixtures feature a copper-free aluminum body with a double-layer polyester powder paint or marine coating, making them highly resistant to corrosion and salt spray fog.
The lights support multiple dimming protocols including DALI, 1-10V, and Triac dimming, as well as motion and infrared sensors.
Depending on the specific series (FLY or FA), the products are rated IP65, IP66, or IP67, ensuring they are fully dust-tight and protected against powerful water jets or temporary immersion.
Yes, the light source is designed to be replaceable, which enhances the sustainability and maintenance profile of the luminaire.
These LED flood lights come with a high-standard warranty period ranging from 5 to 7 years, depending on the configuration and driver used.
